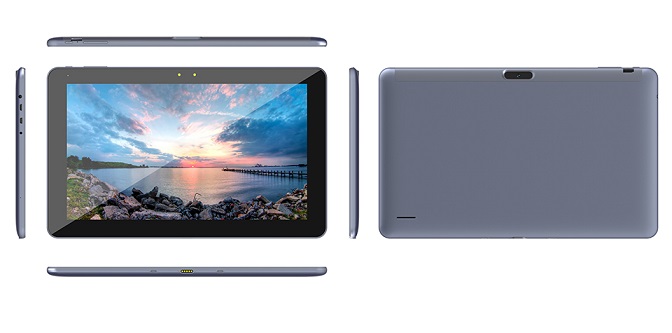

RK3368 11.6
| BND-RK3368-T116 | |
| OS/Processor/Memory Characteristics | |
| OS | phoenix OS 3.0 and Android 6.0 dual system |
| Language Support | Support for multilingualism |
| Processor | Rockchip RK3368H Octa-core |
| Octa-core 64bit Cortex-A53, up to 1.5GHz | |
| PowerVR SGX6110 GPU | |
| Support OpenGL 3.1, OpenGL ES 1.1/2.0/3.0, OpenCL, DirectX9.3 | |
| High performance dedicated 2D processor | |
| Suppport 4K video decoding at 30pfs H.264 and 60fps H.265, Multi-format 1080P video decoders at 60fps（3368H does not support 4K video decoding） | |
| RAM | 1G/2G DDRIII |
| ROM | 8GB-64GB |
| Display Screen | 11.6 inches, EDP |
| Screen resolution | 1366*768 |
| Touch Panel | Capacitive touch screen (Support 5 points touch) |
| External I/O port | Removable keyboard |
| DC interface x1 | |
| Micro USB 2.0 OTG x1, support 3G and U Disk | |
| HDMI x1 | |
| Extended memory card: T card capacity up to 32GB | |
| 3.5mm stereo headphones x1 | |
| Speaker | 8Ω/1W x2 |
| MIC | Built-in MIC |
| Wireless Technology | 802.11b/g/n WALN/BT2.0/BT4.0 |
| 3G Internet Function | USB 3G Dongle, EVO/WCDMA |
| Functional Characteristics | |
| Orientation Sensor | 3 axis gravity sensor |
| Camera | Front Camera 200W&Back Camera 500W |
| Video Format（Support for 1080P FHD） | AVI（H.264, DIVX, DIVX, XVID, rm, rmvb, MKV（H.264, DIVX, DIVX, XVID), WMV, MOV, MP4（H.264, MPEG, DIVX, XVID), MPEG, MPG, FLV（H.263，H.264) |
| Audio Format | MP3, WMA, MP2, OGG, AAC, M4A, MA4, FLAC, APE, 3GP, WAV |
| Image Format | JPG, JPEG, GIF, BMP, PNG |
| 3D E-Book | TXT, EPUB, PDF,WORD,EXCEL, POWERPOINTS |
| Battery | 3.7V/6000mA Rechargeable Battery, life time: 5 hours |
| Usage Time | Internet use: about 4.5 hours |
| Power Adapter | Input：AC100-240V.50-60HZ Output： DC5V 2A |
