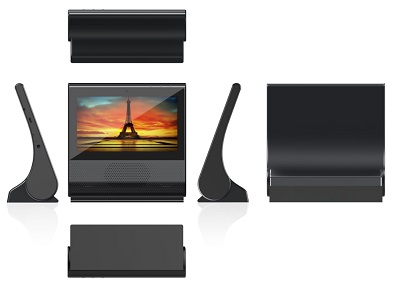

RK3326 smart AI speaker
| BND-RK3326-S716 | |
| Hardware Features | Specifics |
| Platform | Rockchip |
| CPU | RK3326 Quad-core A35 1.5GHz 64bit |
| ARM | Cortex-A35 |
| GPU | Mali-400 |
| OS | Android 8.1 |
| ROM | 8GB-32GB MLC-NAND/EMMC |
| RAM | 1G/2G DDR3 |
| Display Screen | 7.0 inches, IPS 1024*600 |
| Touch Screen | Multi-touch Capacitive Touch Screen（Capacitive ≥ 5 points touch screen, support stylus） |
| Front Camera | 2.0MP |
| Bluetooth | 4.0 EDR |
| T Card Expansion | Yes, up to 32GB, support hot swapping |
| USB | Yes, 5 pin Micro USB, USB 2.0 HS |
| WiFi | Yes, 802.11 b/g/n, support hot spot |
| OTG | Yes |
| MIC | MIC4 |
| Acceleration Sensor | No |
| Optical Sensor | No |
| Distance Sensor | No |
| Gyro | No |
| Electronic Compass | No |
| Structural Features | Specifics |
| Side Button | Physical button x3 (volume+/volume-, power) |
| RF Antenna | No |
| WIFI/BT | Yes, internal type |
| Headphones Interface | 3.5mm 2.1 Line Out with Micphone input（3.5mm headphones connector x1） |
| Battery | Polymer @ 7.6v, 2900mAH/cell (7.6V, 2900mAH Li-polymer battery, the specifics capacity is determined according to the structure） |
| USB Interface | 5 pin USB |
| Speaker | x2 |
| Lanyard hole | No |
| Stylus | No |
| AC Power Sockets | No |
